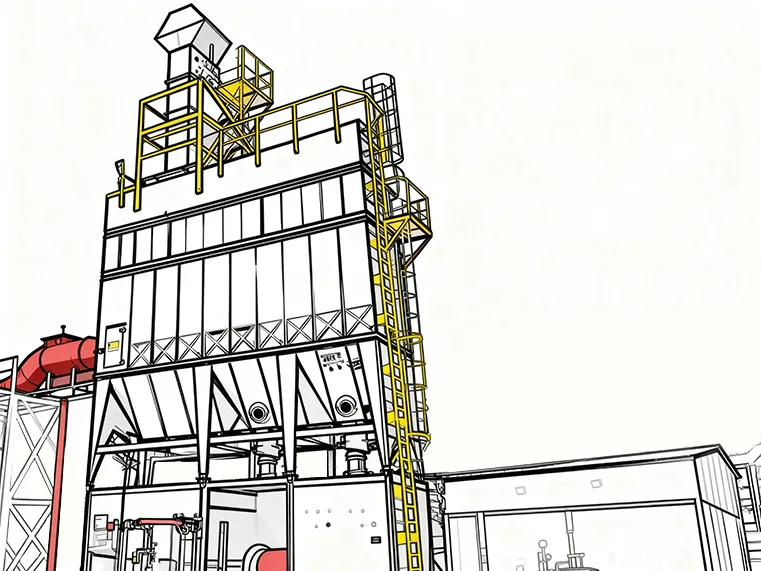

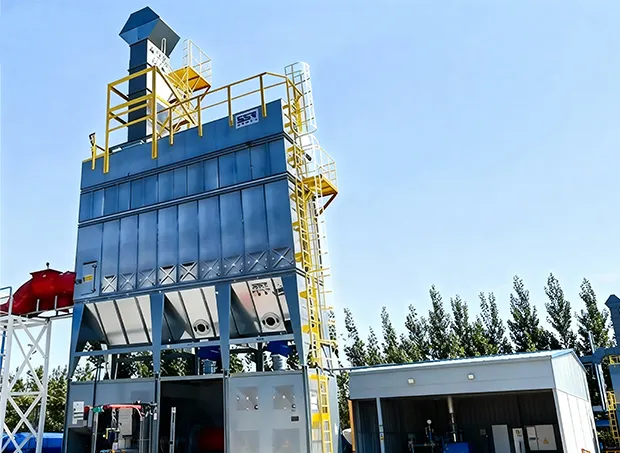

CZ Series is a modular, multi-fan centralized dust removal system designed specifically for medium and large metal dust particles generated in welding, cutting, grinding, polishing, and heavy-duty industrial processes.
Equipped with a built-in fan, low-resistance filtration, and a stable differential pressure system, it delivers powerful extraction with low noise (≤80 dB) while maintaining compact installation space.
The system supports full customization, ideal for new industrial workshops and environmental upgrade projects.
| Model | Power (kW) | Air Volume (m³/h) | Length (mm) | Height (mm) | High Degree (mm) |
| CZ30 | 30 | 30,000 | 3500 | 2400 | 8500 |
| CZ60 | 60 | 60,000 | 6000 | 2400 | 8500 |
| CZ90 | 90 | 90,000 | 9000 | 2400 | 8500 |
| CZ120 | 120 | 120,000 | 11,500 | 2400 | 8500 |
| CZ150 | 150 | 150,000 | 13,000 | 2400 | 8500 |
Step 1: Dust Capture
Install hoods or suction ports at each dust-generating machine (e.g., cutters, grinders, crushers). Dust is immediately captured at the source and drawn into the duct.
Step 2: Conveying
Dust-laden air is pulled through the main duct system by creating strong negative pressure with fans. The airflow acts like a vacuum, drawing pollutants toward the dust collector.
Step 3: Filtration
Air enters the filtration unit, passing slowly through filter cartridges or bags. Dust particles are blocked on the filter surface, while clean air passes through—ensuring emission standards are met.
Step 4: Pulse Cleaning
As dust accumulates, resistance rises. The system triggers pulse-jet cleaning, releasing compressed air to dislodge dust cakes from filters into the hopper below—keeping filtration efficient and uninterrupted.
Step 5: Discharge & Collection
Clean air is discharged indoors (to save energy) or outside. Collected dust falls into the hopper and is regularly removed via discharge valves for unified recycling or disposal.
