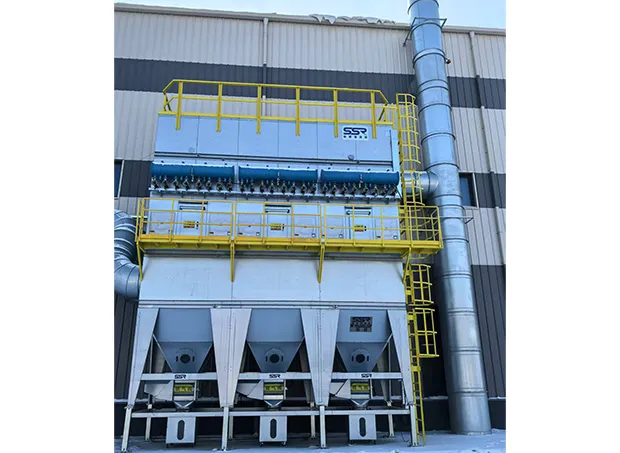

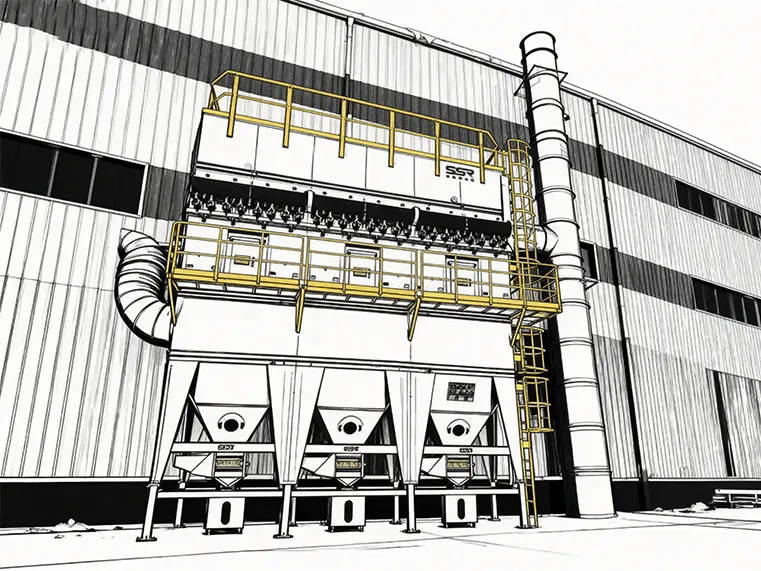

The CP Series Intelligent Modular Centralized Dust Removal System is engineered specifically for ultra-fine particle dust environments such as sanding, fine grinding, polishing, CNC machining, food powder processing, and battery material workshops.
Using high-efficiency multi-fan technology and a compact built-in fan design, the CP Series delivers stable airflow, high precision filtration, low emissions, and quiet performance.
It supports modular expansion, quick installation, and long-term stable operation — ideal for new projects and retrofit upgrades.
| Model | Power (kW) | Air Volume (m³/h) | Length (mm) | Height (mm) | High Degree (mm) |
| CP30 | 30 | 30,000 | 3,500 | 2,400 | 7,000 |
| CP60 | 60 | 60,000 | 6,000 | 2,400 | 7,000 |
| CP90 | 90 | 90,000 | 9,000 | 2,400 | 7,000 |
| CP120 | 120 | 120,000 | 11,500 | 2,400 | 7,000 |
| CP150 | 150 | 150,000 | 13,000 | 2,400 | 7,000 |

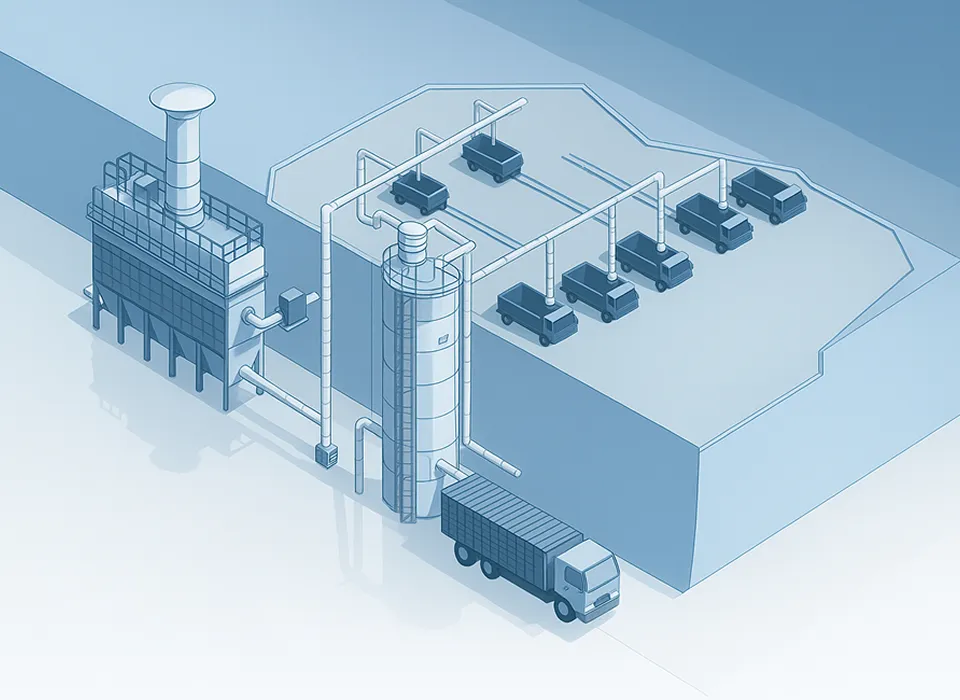

Step 1: Dust Capture
Install hoods or suction ports at each dust-generating machine (e.g., cutters, grinders, crushers). Dust is immediately captured at the source and drawn into the duct.
Step 2: Conveying
Dust-laden air is pulled through the main duct system by creating strong negative pressure with fans. The airflow acts like a vacuum, drawing pollutants toward the dust collector.

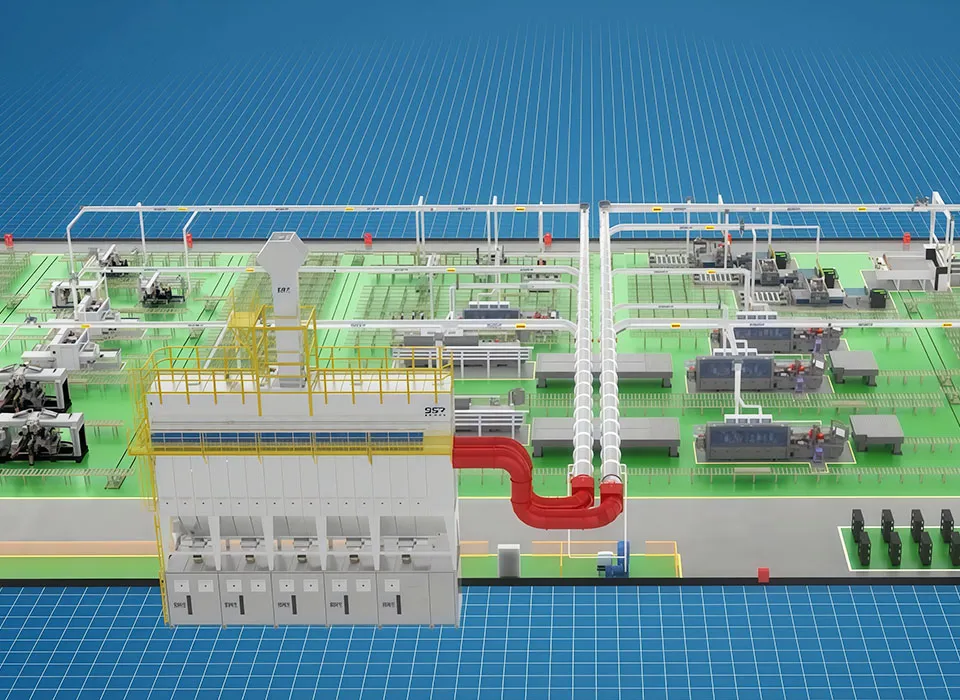

Step 3: Filtration
Air enters the filtration unit, passing slowly through filter cartridges or bags. Dust particles are blocked on the filter surface, while clean air passes through—ensuring emission standards are met.
Step 4: Pulse Cleaning
As dust accumulates, resistance rises. The system triggers pulse-jet cleaning, releasing compressed air to dislodge dust cakes from filters into the hopper below—keeping filtration efficient and uninterrupted.
Step 5: Discharge & Collection
Clean air is discharged indoors (to save energy) or outside. Collected dust falls into the hopper and is regularly removed via discharge valves for unified recycling or disposal.
